Momentum-space and real-space Berry curvatures in Mn$_{3}$Sn

by Xiaokang Li, Liangcai Xu, Huakun Zuo, Alaska Subedi, Zengwei Zhu, Kamran Behnia

This is not the latest submitted version.

This Submission thread is now published as

Submission summary

Authors (as registered SciPost users): Kamran Behnia · Alaska Subedi · Zengwei Zhu
Submission information
Preprint Link: https://arxiv.org/abs/1802.00277v3  (pdf)
Date submitted: 2018-08-31 02:00
Submitted by: Behnia, Kamran
Submitted to: SciPost Physics
Ontological classification
Academic field: Physics
Specialties:
  • Condensed Matter Physics - Experiment
  • Condensed Matter Physics - Theory
Approach: Experimental

Abstract

Mn$_{3}$X (X= Sn, Ge) are non-collinear antiferromagnets hosting a large anomalous Hall effect (AHE). Weyl nodes in the electronic dispersions are believed to cause this AHE, but their locus in the momentum space is yet to be pinned down. we present a detailed study of the Hall conductivity tensor and magnetization in Mn$_{3}$Sn crystals and find that in the presence of a moderate magnetic field, spin texture sets the orientation of the $k$-space Berry curvature with no detectable in-plane anisotropy due to the $Z_6$ symmetry of the underlying lattice. We quantify the energy cost of domain nucleation and show that the multi-domain regime is restricted to a narrow field window. Comparing the field-dependence of AHE and magnetization, we find indirect evidence for real-space Berry curvature caused by these domain walls.

Current status:
Has been resubmitted

Reports on this Submission

Report #2 by Anonymous (Referee 2) on 2018-10-25 (Invited Report)

  • Cite as: Anonymous, Report on arXiv:1802.00277v3, delivered 2018-10-25, doi: 10.21468/SciPost.Report.627

Strengths

1. The topological Hall effect is revealed as a new feature of this system
2. The in-plane isotropic AHE is demonstrated
3. Very systematical field dependence, and insightful analysis of the transport and magnetism data
4. Proposed a scenario for the THE by the possible noncoplanar spin structure in domain walls

Weaknesses

1. The domain wall structure is lack of further support, for example, from the microscopic view. But the exploration of the detailed spin structure is far beyond the scope of current work.
2. Some terms are misleading, such as assuming the existence of skyrmions for the THE, which is not always necessary (see below).

Report

This work reports a hidden feature in the AHE of the chiral magnet Mn3Sn, the existence of a topological Hall effect in the intermediate field region. The systematical measurement and interesting results improve our understanding in similar systems. So I strongly suggest that this work should be published in SciPost.

Requested changes

1. The term of skymion may require some modification. In the discussion of the origin of THE, authors proposed the non-coplanar spin structure. Then they directly use skymions when referring to the spin structure. It is known that non-coplanar spin (or the THE) is not equivalent to the existence of skymion, although these concepts were mixed up in a lot literature. Because the THE and AHE are in the same order of magnitude, the non-coplanar spins exist in a super high density. For the "density compatible with the interatomic length scale", I prefer to call it a unique nocoplanar lattice. In other words, some spin tilting, not necessarily a skymion shape, may be enough to generate a new contribution to the AHE.

2. It is known that rho_xy = 0 for the coplanar spin structure because of the combined symmetry of Mz (z to -z) and T (time reversal symmetry). For the noncoplanar spin structure, if existing, it breaks such a combined symmetry MzT. Then it is very possible to observe a nonzero rho_xy. Therefore, I am asking whether rho_xy was measured for an in-plane (not along z) intermediate field B that induces the domain wall. If yes, it may be another strong signature.

  • validity: top
  • significance: top
  • originality: top
  • clarity: top
  • formatting: perfect
  • grammar: excellent

Report #1 by Anonymous (Referee 3) on 2018-10-9 (Invited Report)

  • Cite as: Anonymous, Report on arXiv:1802.00277v3, delivered 2018-10-09, doi: 10.21468/SciPost.Report.606

Strengths

1 - The paper presents a very systematic study of Hall effect and its dependence of field strength and angle in Mn3Sn
2 - Three distinct regimes of transport are clearly identified, with hysteresis largely restricted to the middle regime.
3 - A plausible association of this phenomena with domains is established
4 - A further more subtle effect is identified and a possible origin in non-coplanar spin textures is given
5 - The clear *absence* of any evident 6-fold crystalline anisotropy is demonstrated

Weaknesses

1 - Based on point 5 above, it is repeated claimed that there is no in-plane anisotropy. However, this is incompatible with the very existence of domains. Domains and domain walls are present *only* when the symmetry which is broken is discrete. A purely XY magnet would not have domains.
2 - There are significant grammatical errors throughout, including even in the abstract and including such a careless error as lack of capitalization of one of the sentences. Authors should proofread at least enough to catch this type of mistake, and find a native speaker to help with this if necessary.
3 - Technically one should probably write $C_6$ rather than $Z_6$ anisotropy and domains.
4 - It is stated that the lack of dependence of the data upon sweep rate means that the system is in equilibrium (page 3). However the mere existence of two distinct states, i.e. hysteresis, means that it cannot be in equilibrium.

Report

This is an interesting paper reporting a detailed study of the Hall effect in Mn3Sn, one of the best known examples of an (almost) antiferromagnet with a large anomalous Hall effect. A great deal of data is presented, and interpretations are offered in terms of a population of domains which is controlled by and depends upon the field strength and angle. The crystalline in-plane anisotropy which is expected to be present by symmetry notably does *not* produce any obvious effects, which must limit its magnitude. Nevertheless, hysteresis which should be associated with some type of at least two state system is present, and this is identified naturally as domains. Many other details are addressed and presented thoroughly, notably the dependence upon angle of the applied field in the plane normal to the current.

In my opinion, the wealth of data and the interesting analysis more than justifies publication. However, the weaknesses identified above - specifically the incompatible of complete absence of anisotropy and the existence of domains, and the wrong statement about equilibrium - should be fixed.

Requested changes

1 - Statements such as "the U(1) symmetry is not broken to a Z6 anisotropy." (last sentence of Sec.4.1) should be fixed. The U(1) symmetry is definitely broken, which is unequivocal given the existence of hysteresis which can be swept by field. How it is broken is not clear from the data.
2 - Fix the wrong statement about equilibrium
3 - Carefully proofread and remove trivial grammatical mistakes, at the very least in the abstract!

  • validity: high
  • significance: high
  • originality: good
  • clarity: good
  • formatting: excellent
  • grammar: below threshold

Author:  Kamran Behnia  on 2018-10-12  [id 328]

(in reply to Report 1 on 2018-10-09)
Category:
remark
reply to objection

Thanks to the anonymous referee for these insightful comments, which will help us to improve our paper.

I have two quick comments:

On equilibrium- Its tricky nature is summarized by Feynman’s definition of it: “when all the fast things have happened but the slow things have not. “ According to our experiment, no matter how fast or how slow we sweep the magnetic field, the measured magnetization remains the same. Because of the hysteresis we should add to this statement “… provided that the magnetic field is swept either upward or downward. “ Recall also that in a first-order transition, hysteresis can be observed when the two states are in equilibrium (See Agarwal and Shenoy Phys. Rev. A 23, 2719( 1981)). One replace “in equilibrium” with “independent of the sweeping rate”, but I think it would be best to clarify the choice and the limitations of the word.

On domains- The referee writes: “Domains and domain walls are present *only* when the symmetry which is broken is discrete.” This is correct. However, what breaks the symmetry here is the magnetic field and not the single-ion anisotropy. The broken symmetry is indeed a discrete C6 symmetry.
Liu and Balents wrote in Phys. Rev. Lett. 119,087202 (2017): “Heisenberg exchange and Dzyaloshinskii-Moriya (DM) interaction select an approximately 120° pattern of spins with negative vector chirality, which leaves a U(1) degeneracy: any rotation of spins within the ab plane leaves the energy unchanged, when the single-ion anisotropy is neglected.”
This statement is our starting point. The application of in-plane magnetic field adds a new twist. Our experiment finds that this single-ion anisotropy is vanishingly small and what lifts the U(1) degeneracy is the in-plane magnetic field. Therefore, instead of having SIX domains (which would have been the case if the degeneracy was lifted by the single-ion anisotropy), we have only TWO domains set by the orientation of the magnetic field.

Anonymous on 2018-10-15  [id 329]

(in reply to Kamran Behnia on 2018-10-12 [id 328])
Category:
remark

This is a response from the earlier referee -- I do not quite understand the protocol for scipost. Anyway, I appreciate the clear response. I do not completely agree with the last point on domains, however. If the only term in the Hamiltonian which breaks U(1) symmetry is the magnetic field, then there will actually just be one stable or even metastable domain, not two. To get domains in the presence of a field, one needs some competing anisotropy to work against the field to oppose the force on the oppositely aligned domain (with magnetization anti-aligned to the field). To get two metastable domains, one solution would be to have a two-fold anisotropy, e.g. uniaxial within the plane. This can balance the field and yield two domains when the field is small enough. Basically one has an energy

\[ E = - a \cos2\theta - h \cos (\theta-\phi), \]

where $a$ is the two-fold anisotropy and $h$ is the Zeeman energy of the field, which is at an angle $\phi$ in the plane. When $h$ is not too large there are two local minima of this energy. This is not quite a solution because the material does seem to have 6-fold symmetry. But I do think the paper should recognize that there is some mystery here.

If not, I would be happy to see the authors offer some theory of how domains form without in-plane anisotropy and only the effect of an applied field.

Author:  Kamran Behnia  on 2018-10-17  [id 332]

(in reply to Anonymous Comment on 2018-10-15 [id 329])

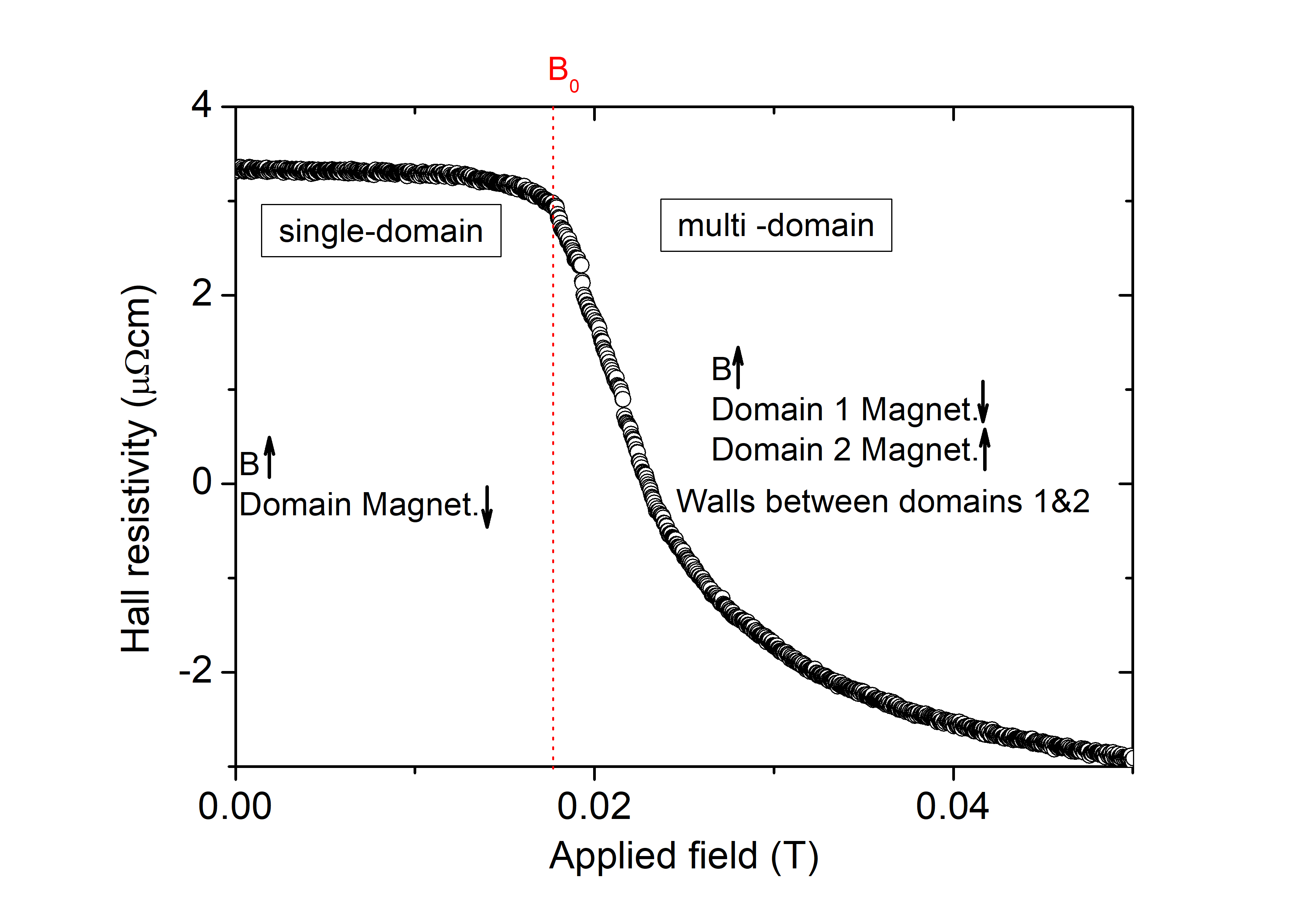

As far as I see, your argument is valid save for the fact that a finite energy cost for domain walls is not included in your equation. The attached image, is a zoom on Figure 1. Below a threshold field, the system remains single domain. It pays the energy cost of tolerating a domain with opposite magnetization to the applied field, because by this, it will avoid paying the cost of building a wall. Nucleation of a second domain (with a polarity conform to the lowest energy set by magnetic field and with a thick wall of unknown texture) starts at a field corresponding to the equality between the two energies. The one paid for bulk magnetization and the one avoided by the absence of domain walls. This is the picture invoked by classical nucleation theory in the context of hysteretic first-order phase transitions. We believe that it gives a reasonable picture of what is happening here. Admittedly, the issue of the fine structure of the interface between domains remains an open question for future theoretical and experimental studies.

I don't know much about the Scipost protocol either, but I appreciate your stimulating comments.

Attachment:
